Features:
Welcome you to use our CJB801 hand-control vehicle electronic light bar alarm of our factory. This product has inherited the functions and the merits of CJB alarm series, and uses the hand-control type and the back light display in the design, may let you install conveniently, the operation is easier. This product outward appearance succinct and fine, the performance stable, the quality is reliable, and increased the function of four light bar control, overtake warn (to prolong 8 second), two kinds hooter tone to choose, out line hooter control and out line radio input function. It can widely installs in all kind of vehicles.
Technical Parameters
Model | CJB803 100W | CJB803 200W/300W/400W |
L(mm) | 140 | 147 |
W(mm) | 116 | 155 |
H(mm) | 50 | 61 |
Rated Voltage | DC12/24V | DC12/24V |
Rated Power | 100W | 200W/300W/400W |
Rated Impedance | 8 ohm/ 11ohm | 8 ohm/ 11ohm |
Main Functions | Air Horn,Siren,Wail,Yelp,Hi-lo, Phaser | |
Sound Compressior | 115-125dB |
120-130dB |

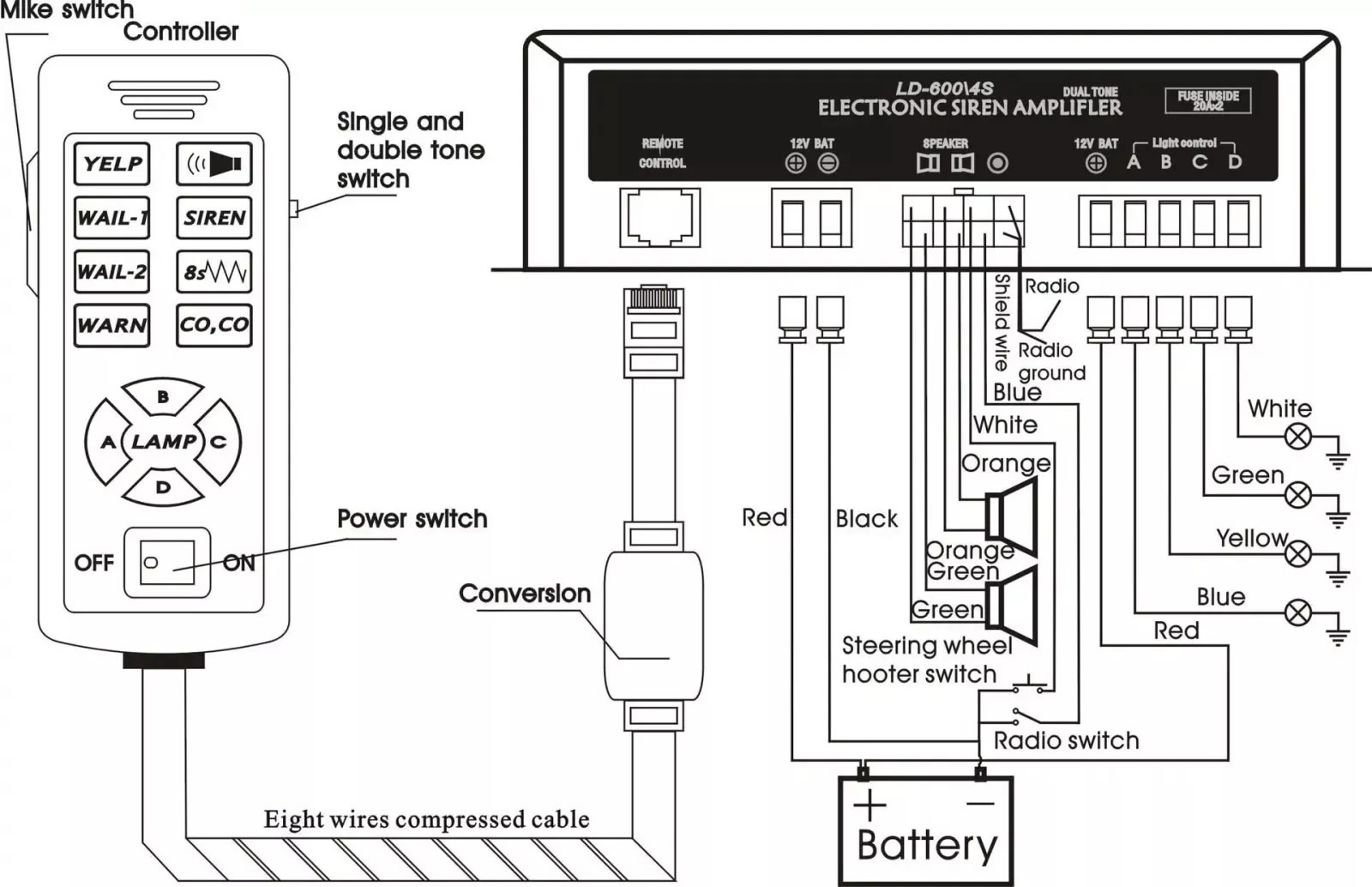

NOTICE:
(1) The host not waterproof, please install it in ventilating and far from the hot source place
(2) Can not install the siren in range of safety air chamber of vehicle.
(3) It should install in place where driver convenience use.
(4) Can not mistake the power supply + and – wire.
(5) Two speaker lines cannot meet directness.
(6) 300W and 400W have two group of power supply wires, all should be connect.
(7) The controller can use on all siren of this series, but can not use on other type siren, otherwise can result in host damaged.
(8) This machine is according to the power source cathode ground connection design, do not have to install directly to the positive ground chassis
ACCESSORIES:
1. Controller 1 set
2. Eight wires compressed cable 1 bunch
3. Lights connect wires 1 bunch
4. Power and speaker connect wires 1 bunch
5.φ4 screw 4pcs
6. Fuse 2pcs

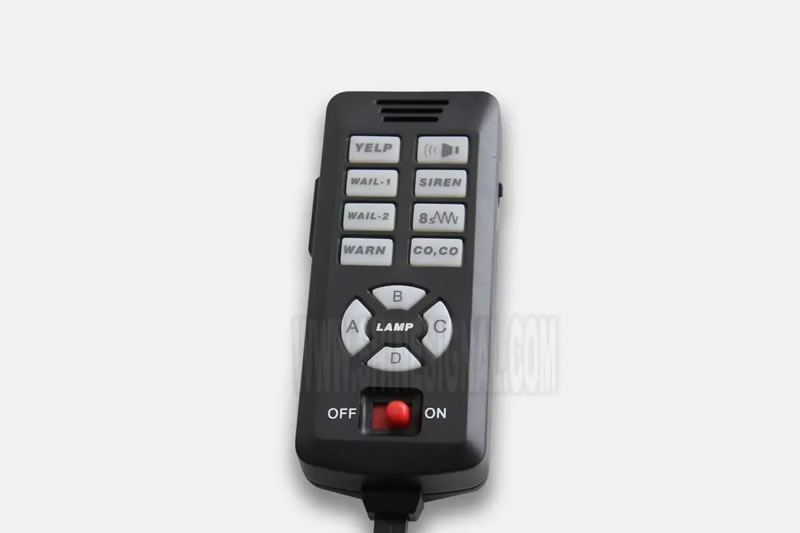

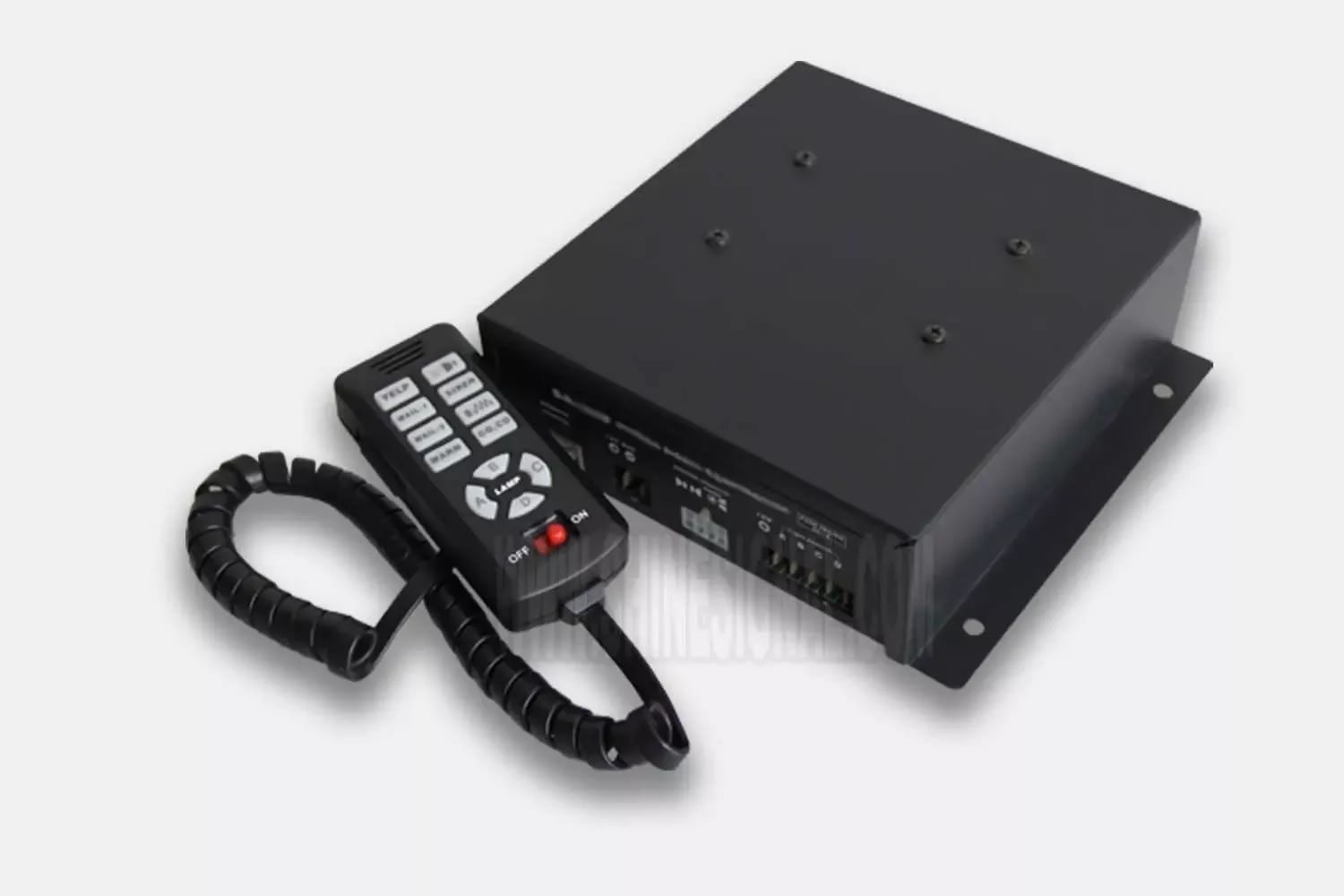

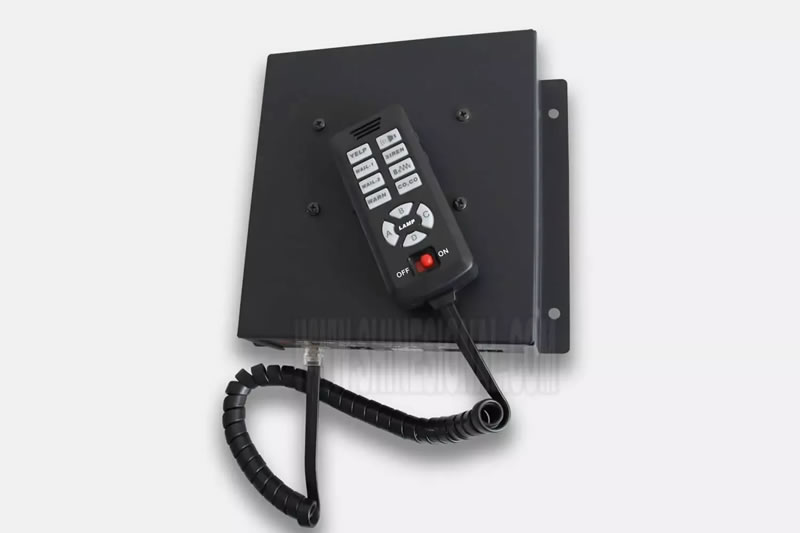

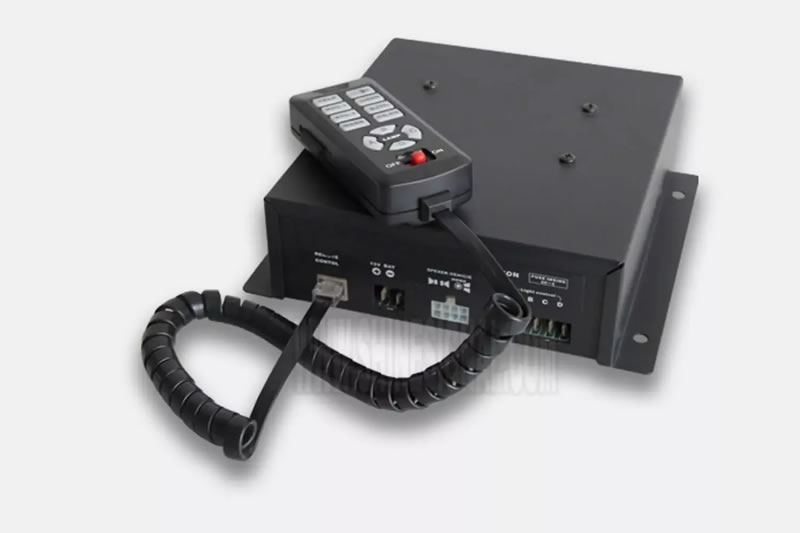

More Pictures:
